Ceiling Tile Clip Reusable Design

In the world of interior construction and ceiling installation, ceiling tile clip, suspended ceiling tile grid, and ceiling main tee are integral components that play crucial roles in creating sturdy, functional, and aesthetically pleasing ceiling systems. These elements work in harmony to ensure that ceiling tiles are properly supported, aligned, and secured, whether in a commercial office space, a residential basement, or a public building. Understanding the features, functions, and installation requirements of each of these components is essential for contractors, architects, and DIY enthusiasts looking to achieve a professional - grade ceiling installation. This article will delve deep into the details of ceiling tile clips, suspended ceiling tile grids, and ceiling main tees, exploring their characteristics, applications, and providing answers to frequently asked questions.

The Importance and Function of Ceiling Tile Clip

Ceiling tile clips are small but mighty components that are essential for the proper installation and stability of ceiling tiles within a suspended ceiling system. These clips are designed to hold ceiling tiles firmly in place, preventing them from shifting, sagging, or falling out of the grid.

Types of Ceiling Tile Clips

1. Spring - Loaded Clips: These clips use the force of a spring to grip the edges of ceiling tiles. When installed, the spring exerts pressure on the tile, ensuring a secure fit within the grid. Spring - loaded clips are ideal for areas with moderate to high levels of vibration or movement, as they can maintain their grip even under such conditions.
2. Snap - On Clips: As the name suggests, snap - on clips are designed to be easily attached to the ceiling tile and the grid. They have a simple locking mechanism that allows for quick and straightforward installation. Snap - on clips are popular for DIY projects due to their user - friendly nature.
3. Adhesive - Backed Clips: These clips come with an adhesive backing that adheres to the back of the ceiling tile. Once the adhesive is activated, usually by peeling off a protective layer, the clip can be firmly attached to the grid. Adhesive - backed clips are suitable for lightweight ceiling tiles and areas where a more permanent attachment is desired.
4.

Functions of Ceiling Tile Clips

• Stability: By securely holding the ceiling tiles, clips prevent any unwanted movement, ensuring that the ceiling remains level and aesthetically pleasing.
• Safety: A well - clipped ceiling tile is less likely to fall, reducing the risk of injury to people below. This is especially important in public spaces or areas with high foot traffic.
• Aesthetic Enhancement: Properly installed clips help in maintaining the alignment of ceiling tiles, creating a seamless and professional look for the ceiling.
•

Design and Installation of Suspended Ceiling Tile Grid

The suspended ceiling tile grid forms the structural framework that supports the ceiling tiles. It consists of a network of metal or plastic channels that are suspended from the ceiling joists or structure above.

Components of a Suspended Ceiling Tile Grid

1. Main Runners: These are the primary horizontal channels that run the length of the ceiling. They are typically made of galvanized steel for durability and strength. Main runners are attached to the ceiling joists using hanger wires at regular intervals.
2. Cross Tees: Cross tees are perpendicular to the main runners and are used to create the individual cells or compartments where the ceiling tiles are placed. They interlock with the main runners, providing a stable grid structure.
3. End Caps and Connectors: End caps are used to finish the ends of the main runners and cross tees, while connectors are used to join multiple sections of the grid together, allowing for easy expansion and customization of the ceiling layout.
4.

Installation Process

1. Measuring and Marking: The first step in installing a suspended ceiling tile grid is to measure the ceiling area accurately and mark the positions of the main runners and cross tees. This ensures a proper fit and alignment of the grid.
2. Installing Hanger Wires: Hanger wires are attached to the ceiling joists at the marked positions. The length of the hanger wires is adjusted to achieve the desired height of the suspended ceiling.
3. Attaching Main Runners: The main runners are then attached to the hanger wires, ensuring that they are level and straight.
4. Installing Cross Tees: Once the main runners are in place, the cross tees are inserted and interlocked with the main runners to form the grid pattern.
5. Checking and Adjusting: After the grid is installed, it is important to check for any unevenness or misalignment and make the necessary adjustments before installing the ceiling tiles.
6.

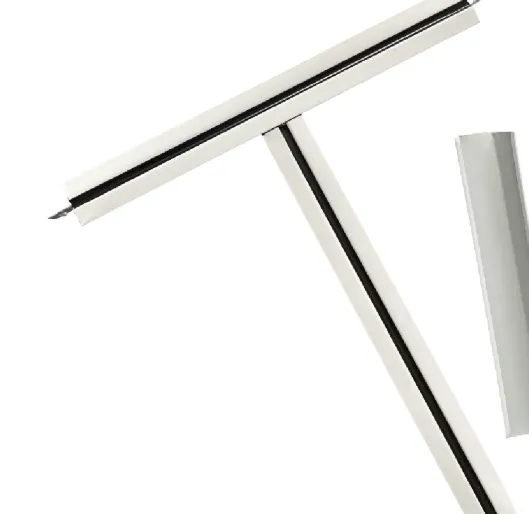

The Role and Characteristics of Ceiling Main Tee

The ceiling main tee is a crucial part of the suspended ceiling tile grid system. It serves as the backbone of the grid, providing support for the cross tees and, ultimately, the ceiling tiles.

Characteristics of Ceiling Main Tees

• Materiaal: Ceiling main tees are commonly made from galvanized steel, which offers excellent strength, durability, and resistance to corrosion. Some may also be made from aluminum for lighter - weight applications or in areas where corrosion resistance is a high priority.
• Shape and Size: They typically have a T - shaped cross - section, with the top part being wider to provide a surface for attaching hanger wires, and the bottom part being narrower to accommodate the cross tees. The size of the main tee can vary depending on the load - bearing requirements of the ceiling system, with larger tees being able to support more weight.
• Finish: Main tees often come with a pre - finished surface, such as a white powder - coat finish. This not only provides an aesthetically pleasing appearance but also helps to protect the metal from damage and corrosion.
•

Functions of Ceiling Main Tees

• Load - Bearing: The main tee is responsible for supporting the weight of the cross tees, ceiling tiles, and any additional loads, such as lighting fixtures or sprinkler systems, that may be attached to the ceiling.
• Alignment: It helps in maintaining the straightness and alignment of the cross tees, ensuring that the ceiling tiles are evenly spaced and properly aligned.
• Installation Aid: The T - shape of the main tee makes it easy to install hanger wires and attach cross tees, simplifying the overall installation process of the suspended ceiling system.
•

Comparing Ceiling Tile Clip, Suspended Ceiling Tile Grid, and Ceiling Main Tee

While ceiling tile clips, suspended ceiling tile grids, and ceiling main tees all work together in a suspended ceiling system, they have distinct characteristics and functions. The following table provides a comparison:

FAQS about Ceiling Tile Clip, Suspended Ceiling Tile Grid, and Ceiling Main Tee

How do I choose the right ceiling tile clip for my project?

When choosing a ceiling tile clip, consider the following factors:

1. Tile Type and Weight: Different clips are designed to support different tile weights. Ensure that the clip you choose can handle the weight of your ceiling tiles.
2. Environmental Conditions: If the area is prone to vibration, humidity, or temperature changes, select a clip that can withstand these conditions. For example, spring - loaded clips are good for vibrating areas.
3. Installation Method: Consider whether you prefer a clip that is easy to install, such as a snap - on clip for a DIY project, or a more permanent adhesive - backed clip.
4.

What is the recommended spacing for suspended ceiling tile grid components?

The recommended spacing for suspended ceiling tile grid components depends on several factors, including the size and weight of the ceiling tiles and the load - bearing requirements of the system. In general, main runners are spaced 48 inches apart, and cross tees are spaced 24 inches (60.96 cm) apart for standard 2 - foot by 2 - foot ceiling tiles. However, for heavier tiles or larger ceiling areas, the spacing may need to be reduced to provide additional support.

Can I install a ceiling main tee on my own?

Yes, it is possible to install a ceiling main tee on your own, especially if you have some experience with construction or DIY projects. However, it is important to follow the installation instructions carefully and ensure that the main tee is level and properly supported. If you are unsure about any aspect of the installation, it may be advisable to consult a professional contractor to avoid any potential issues with the ceiling system.

What should I do if my ceiling tile clip fails?

If a ceiling tile clip fails, the first step is to remove the affected ceiling tile carefully. Then, inspect the clip and the surrounding area for any signs of damage or wear. Replace the faulty clip with a new one of the same type and ensure that it is properly installed. After reinstalling the ceiling tile, check to make sure that it is securely held in place and that there is no movement.

How do I maintain a suspended ceiling tile grid?

To maintain a suspended ceiling tile grid, regularly inspect the grid for any signs of damage, such as bent or broken main runners or cross tees. Clean the grid periodically to remove dust and debris, which can accumulate over time and affect the appearance and functionality of the ceiling. If any components are damaged, replace them immediately to prevent further issues with the ceiling system.

Ceiling tile clips, suspended ceiling tile grids, and ceiling main tees are the building blocks of a reliable and visually appealing suspended ceiling system. Whether you are undertaking a large - scale commercial project or a small - scale home improvement job, understanding these components is key to a successful installation.

At [Shijiazhuang Xingyuan decoration materials Co., LTD], we offer a comprehensive range of high - quality ceiling tile clips, suspended ceiling tile grids, and ceiling main tees. Our products are designed to meet the highest industry standards, ensuring durability, ease of installation, and a professional finish. Whether you need advice on product selection, installation tips, or bulk orders, our team of experts is here to assist you.

Don't compromise on the quality of your ceiling installation. Visit our website today to browse our extensive product catalog, read customer reviews, and access helpful installation guides. Transform your space with our top - notch ceiling components and experience the difference in quality and performance. Let [Company Name] be your trusted partner for all your ceiling installation needs
